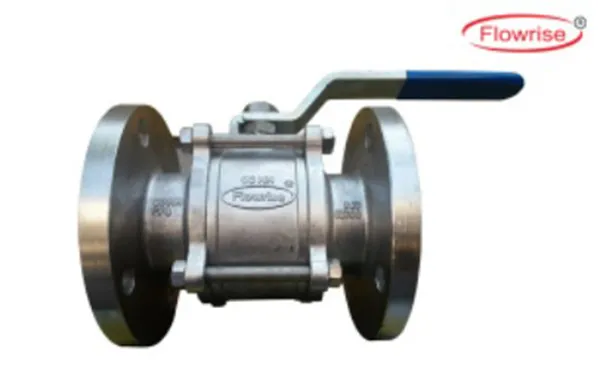

Three Piece Ball Valve

A : Face to Face Length
B : Screwed Length
C : Centre to Handle end
All Dimension in MM
Flange Diameter according to (BS 10 table D,E,F ), (ANSI B 16.5 Class 150,300,600) and DIN ND Standards as per customer specification.
End Connection in screwed, Flanged or socket weld, Flanged can be drilled to ANSI, BS & DIN Std.
Also available in fire safe, Jacketted design.
Lever operated, Gear Operated or can be fitted with actuators.
Positive shut off with quarter turn operation.

Technical Specs
