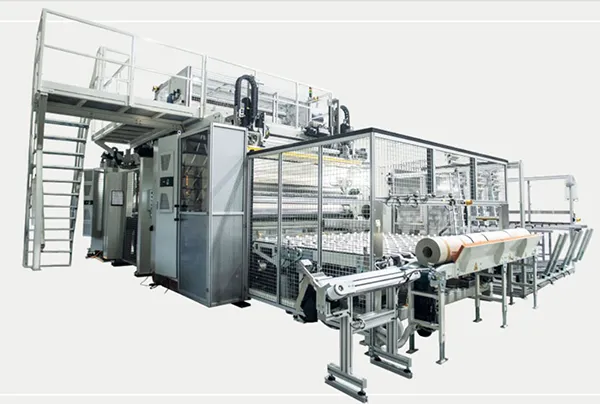

ProfiMAT series
The high-performance all-rounder for foils, adhesive foils, protective foils, paper, fleece and fleece composites, laminates and fabrics
- Inline assembly for large and short rolls, with and without cores
- Preparation and turnover-free winding of the new web
- As a ProfiMAT slitter also as a roll cutter with gapped winding on a winding shaft, for example for continuous operation
- Use for finished rolls with or without a core, cutting widths depend on the material and working widths
- As ProfiMAT-Protec especially for adhesive films and protective films
- For inline and offline operation
- For sectors such as: construction & roofing industry, insulation, agriculture & garden, technology, automotive, hygiene, etc.
Technical data – standard version:
- Working width up to 4,000 mm (depending on the material)
- flexible material thicknesses
- Max. production speed (depending on the product): 10-800 m/min.
- Up to 8 roll changes/min. (depending on the material)
- Designed for multi-shift operation
- Finished roll Ø: 50-1,200 mm
- Format sizes for banding: from 200 mm to 450 mm in running direction;
Across the web from 200 mm to 850 mm
- Tape rolls: max. Ø 300 mm
