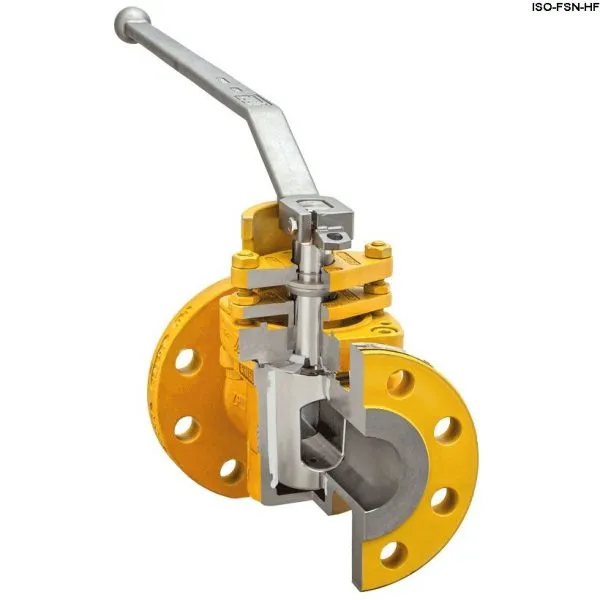

ISO-FSN-HF

ISO-FSN-HF

DESCRIPTION

Plug Valve, Special design for HF Alkylation process and Hydrofloric acid applications (UOP approved)Safety tripple plug stem sealing system.DN 15 – 600 / PN 10 – 100NPS ½” – 24″ / class 150 – 600

Monel materials
In accordance to the UOP process and piping specifications HF1, HF10, HF2 and HF20
Free of cavity
Maintenance free – self lubricating
Mounting-flange for actuators acc. to DIN ISO 5211
Easy accessible adjustment of the plug, even with an actuator mounted
Fugitive emmission resp. clean air act certified (TA-Luft 2002 approval)
PED 2014/68/EG
Fire safe design API 607 / ISO 10497
