Lined Plug Valves ISO STANDARD A CA
Lined Plug Valves ISO STANDARD A CA

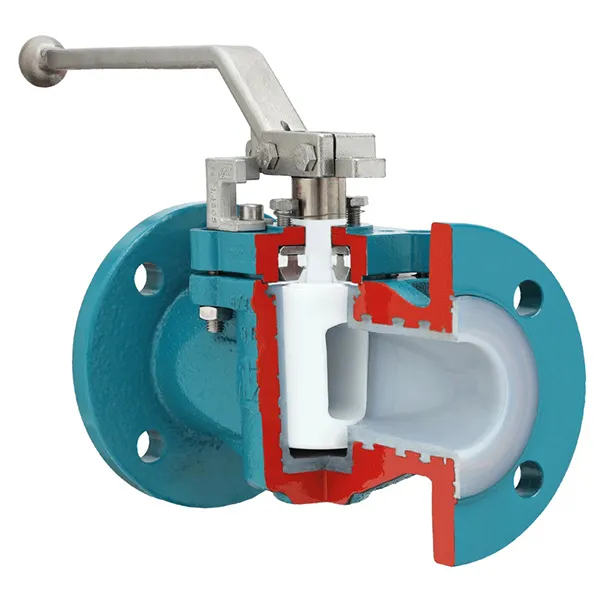

Plug valve with chemical-resistant, vacuum-proof lining, with ISO top flange, sealing system Type CA
DIN-EN: DN 15 – 600 / PN 10 – 40
ASME: NPS ½“ – 24“ / class 150 – 300
PT range: -30 < T < 210°C, vacuum tight
Design Characteristics
- free of cavities
- maintenance free – self lubricating
- mounting-flange for actuators acc. to DIN ISO 5211
- easy accessible adjustment of the plug, even with mounted actuator
- with chemical resistant lining – thickness min. 3 mm vacuum tight
- fugitive emmission resp. clean air act certified (TA – Luft 2002 approval)
- Directive 2014/68/EU
- FDA conformity
Materials
Standard body materials
• Ductile cast iron ENJS 1049, ASTM Gr 60-40-18 / A395
Standard plug materials
• Stainless Steel 1.4308, ASTM A351 CF8
• Ductile cast iron ENJS 1049, ASTM Gr 60-40-18 / A395
Special materials
• Carbon Steel 1.0619, ASTM A216 WCB
• Stainless Steel 1.4408, ASTM A351 CF8M
• Unalloyed stainless steel casting (low Temp.) 1.1138, LCC/LCB/A352
Lining materials
• Body: PFA, PFA-conductive, FEP
• Plug: PTFE, PFA, PFA-conductive, FEP
