Automat Industries Private Limited

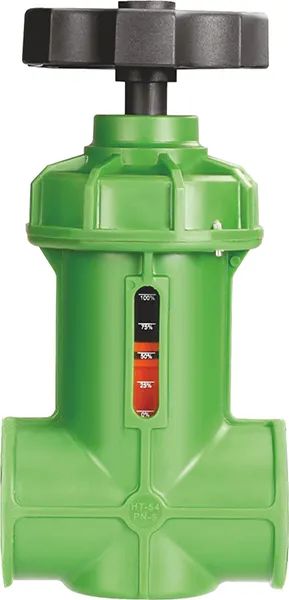

Throttle Valve

Multi-turn, linear motion throttle valve. Straight through flow with minimal head loss, its slow operation prevents water hammer. Float, body inside profile.

Features

• Multi turn Linear motion throttle valve.
• End connections: Female Threaded type
• Max. Pressure : 6 Bar/85Psi.
• Straight through flow with minimal pressure loss.
• Its slow operation prevents water hammer.
• Visual float position indicator to show us % throttle of piping system.
• Steel Rod inserted in full length during injection moldings of Shaft made of Reinforced Nylon, that gives excellent strength without breakage during rough usage.
• Float Body profile is matched by CNC machines for smooth operation and keeping the leakage under permissible limit during complete shut off.
• Dowel pin inserted in the shaft to prevent extra travel of float which do not transfer load on during extra tightening by farmers. This prevents breakage of cap.
• During assembly of throttle valve, 2 nos. lock pins inserted to avoid any slippage or loosening of threads of throttle valve cap..
• Maintaining seat leakage permissible limit as per standard ANSI/FCI-70-2-2006 in Class III (0.10%).
• Chemical / Corrosion resistant, Color UV stabilized.
