AquFlow

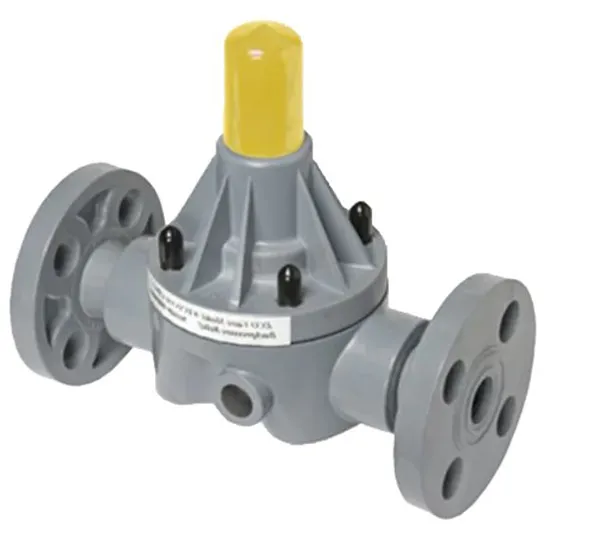

Safety Relief Valve

AQU Valve is also designed to be used as a 2 port off line pressure relief valve to help protect the discharge side of positive displacement pumps from system failure due to over pressure caused by a blockage or accidental valve closure on the downstream side of the pump. (Factory set @ 50 psig / 345kPa)

Standard Features:

No moving parts in wetted chamber; superior choice for “dirty” fluid applications .

High flow capacity with lower pressure drop.

Optional diaphragm materials.

Color coded caps indicate size.

Sizes ¼” to 4” (8 DN to 100 DN).

10 configurations: threaded, socket, union   and flanged.

Injection mould design with fewer moving parts.

High ambient temperature ranges.

Gauge port available in either flow direction.
