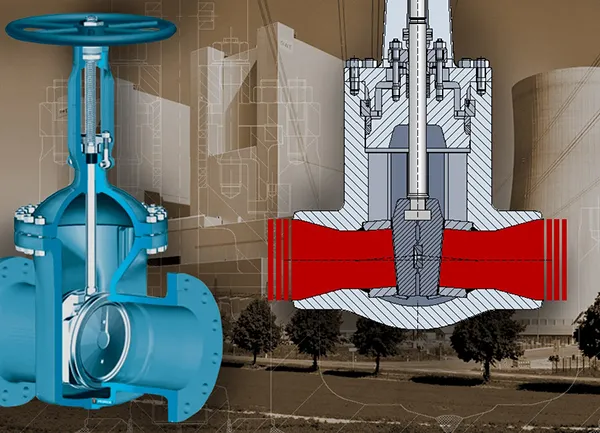

Gate Valves

Valves with stuffing box or bellows sealed pressure seal bonnet or blank flange.

DN 50-1000

PN up to 40 DN 50-300

PN up to 100 DN 50-300

PN 160 DN 50-700

PN 100-630 (PD 10-63) DN 10-50

PN up to 100 (Class 800)

Body materials:

Carbon steel: 1.0425, 1.0460, 1.5415

Alloy steel: 1.4901, 1.4903, 1.6368, 1.7335, 1.7383,

Stainless steel: 1.4571

Stainless steel low temperature: 1.4308

Other materials on request

Connections:

Flanges

Butt weld ends

Socket weld ends ≤ DN 50
