Refiner Control Panels

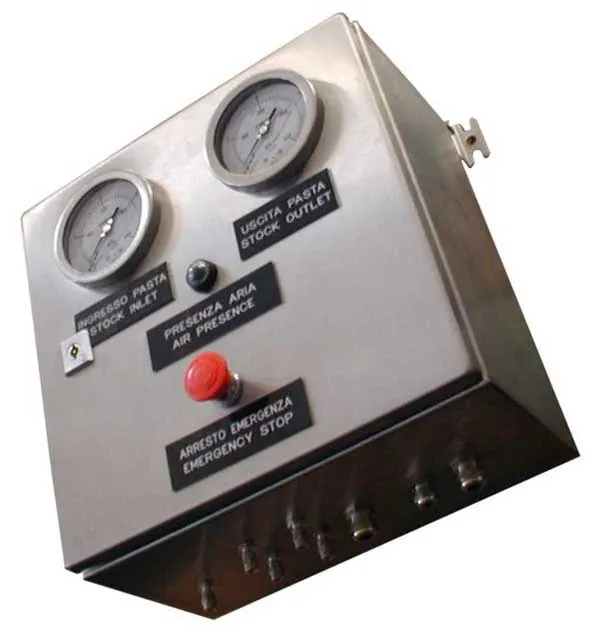

The refiner control panel, RCP series, allows the monitoring of the pressure of stock before (INLET) and after (OUTLET) the refining process in paper industry. The visualization of refiner control panel is made locally by 2 analog manometers in the front panel and a retransmission of the values is available through 2 converters with standard 4-20mA output signal.



Air supply in refiner control panel is controlled through a filter regulator and sent to 2 on process pneumatic repeaters as well as to an on-off air presence indicator mounted on the front panel. The air is fed to the refiner control panel to be measured by the manometers and by the converters for remote transmission on a 2 wires 4÷20mA system.
