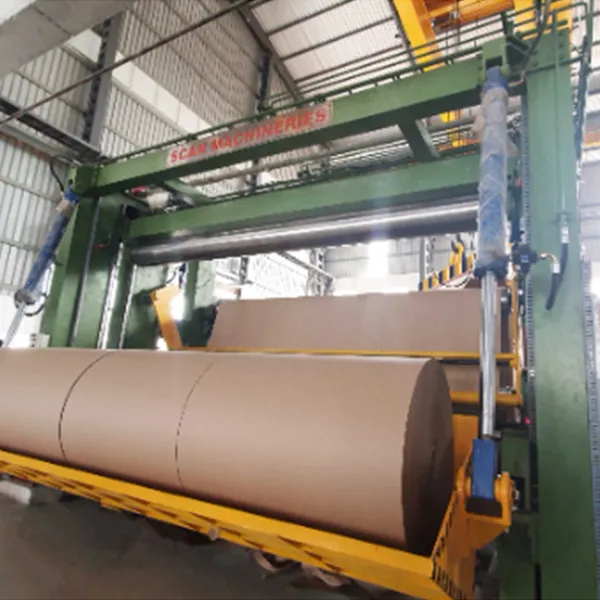

Board and Kraft Two Drum Winder

Board and Kraft Two Drum Winder

Scan Machineries designs, engineers and manufactures Board and Kraft Paper Winders for Paper Manufactures producing high basis weights (gsm) at high design speeds. The Two Drum Winder is equipped with an Unwind Stand, a Slitting station and the Main Frame which houses the reel ejector, unwind stand including all the rolls. Automatic ejection of high quality rolls with excellent winding ensuring the right density of finished rolls. Contact nip pressure and winding tension are calibrated to the most precise settings for optimal production speeds and high capacity winding.

  • Widths up to 7000 mm

  • Operating Speeds up to 2000 mpm

  • Unwind Diameters up to 3000 mm

  • Finished Reels up to 2000 mm

  • Automatic Tension Control, Nip Control and Torque Control (TNT)

  • Robust and Compact Two Drum Winder

  • Automatic and Semi-Automatic Slitter Positioning Systems

  • Suitable for High Basis Weights (GSM)

  • Perfect for Kraft Paper, Graphic Paper, Coated and Non-Coated Board
