Energy Efficient Compressed Air Dryers
Energy Efficient Compressed Air Dryers
High performance compressed air treatment for clean, dry air

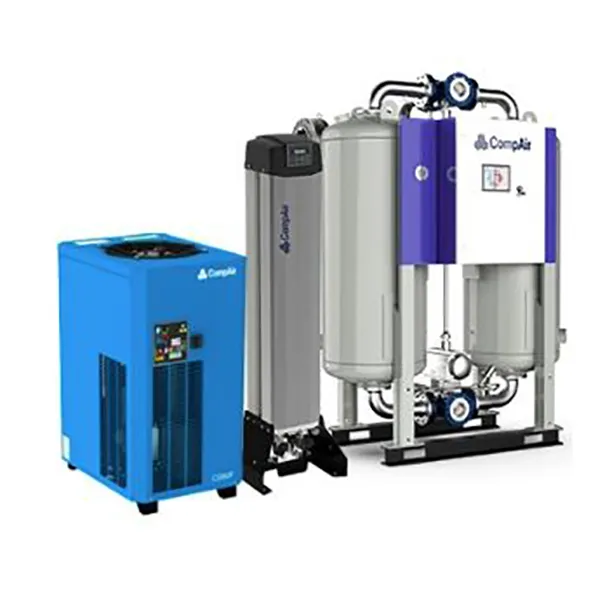

CompAir offers a full range of energy-efficient and environmentally friendly compressed air dryers including refrigerant, modular desiccant, and heatless desiccant as well as HOC dryers. All of our technologies are engineered for maximum reliability, long life cycles, and easy service access, so whichever technology you choose, you can be sure your investment offers undeniable performance.
Air is a colourless, odourless, tasteless mixture of many gases, primarily nitrogen and oxygen. It is naturally contaminated with solid particles, such as dust, sand, soot and salt crystals. This contamination varies with differing environments and altitudes.
Water vapour is another natural ingredient that can be found in variable amounts in the air. The amount of water vapour and contamination of the air plays a vital role in the compression process and in the quality of the air delivered by the compressor.
The damaging and corrosive properties of water are well known. Untreated air at atmospheric pressure contains large amounts of water and other contaminants such as oil droplets and dirt particles.
When the air is compressed the concentration of moisture and other contaminants increases. If allowed to remain in the system, this corrosive mixture has a detrimental effect on pneumatic equipment, causing unnecessary production downtime, product spoilage and reduced equipment life.
Compressed air dryers are used to remove moisture from the compression process, protecting equipment and products from harm and ensuring clean, dry air quality.
Why use a compressed air dryer?
Safe operation
Untreated air can cause corrosion and damage to your pipework and the internal structure of your air compressor. This can eventually lead to a system breakdown, costing you time and money. Compressed air dryer will help to keep your system running damage-free and your operation safe and reliable with long term results.High-quality end-product
Whatever your application, you need to be sure that your end-product is of high quality. Air that contains water vapour can cause product spoilage which can be very costly to businesses. Compressed air dryer ensures that air is pure and dry before it reaches the point of use.Peace of mind
Modern production systems and processes demand high quality compressed air, which is defined in the 6 classes outlined in international standard ISO 8573- 1:2010. These are only achievable with filtration, water separation and drying. Trust powerful compressed air dryers to offer complete reassurance and total peace of mind for your business.
Different drying technologies
Refrigerant dryers
Refrigerant dryers are the most common type of drier technology used by many industries. As the name suggests, heat exchangers are used to cool compressed air which will condense the bulk amount of water vapour within the air. Once the compressed air is cooled and water is removed, the air is reheated to around room temperature to ensure no more vapour forms within the pipe system.
CompAir refrigerant dryers are characterised by their energy efficiency, which helps to reduce running costs thanks to their patented heat exchanger technology. The CD series of refrigerant dryers offer a host of benefits to the user including:
- High quality heat exchangers with low pressure losses
- Energy saving mode – shuts dryer off during low loads
- Full feature, multi-function innovative control panel
- Anti freeze mode – shuts dryer off to avoid icing
- Low operating costs
- Compact design
- Alarm display with history of alarms
- Effective condensate separation
- Easy to install, operate and maintain
- Simplified access to unit for easy maintenance
The CD-series refrigerant dryers deliver a comprehensive, cost-effective solution to multiple applications across a wide range of sectors including automotive, manufacturing, petrochemical, oil and gas, dry cleaning and light processing to name a few. They offer a fantastic return on investment and are available in a wide range of airflows. Read our brochure on the downloads tab for more information.
