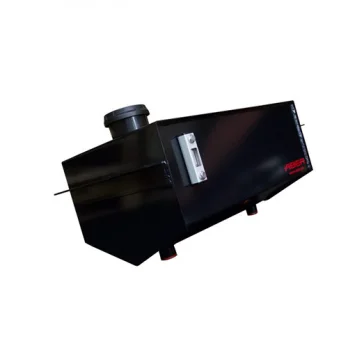

Chassis Mounting V Bottom Type Oil Tank

Chassis Mounting V Bottom Type Oil Tank

CHASSIS MOUNTING V BOTTOM TYPE

Capacity (Liters)

Material

A (mm)

B (mm)

C (mm)

Suction Pipe *BSP

35

FE - AL - IX

290

380

400

1" 1/4

45

FE - AL - IX

290

380

510

1" 1/4

65

FE - AL - IX

300

400

600

1" 1/4



How to order

Reference

Standard Capacity

Material

Level Indicator

Filter and Breather

Mounting Options

Optionals

TCV

35L

FE

R

N

0

M


45L

AL

L

FB

1




65L

IX





1A




2




3




4





Example: TCV 35 FE L FB 4

Tank with 35 liters, Chassis Mounting V Bottom Type, made in Steel, with Long Optical Oil Level, Filler Cap with Integral Air Filter, Direct Oil Return;

CODES DESCRIPTION

  • FE – Steel
  • AL – Aluminium
  • IX – Stainless Steel
  • R – Round Oil Level Indicator
  • L – Long Optical Oil Level Indicator
  • N – Ready for filler CAP Plug
  • FB – Filler CAP Breather Plug  with integral air filter
  • 0 – Ready for Tank top oil return filter or flange for valve
  • 1 – Tank Top Oil return filter single port
  • 1 A – Tank Top Oil return filter double port
  • 2 – Flange to Pneumatic Distributor and Oil Filter (Distributor not included)
  • 3 – Flange to Electrical Distributor  and Oil Filter (Distributor not included)
  • 4 – Direct Oil Return
  • M – Manometer for Return Filter
